Golf Cart Battery Cell Imbalance: How to Check Voltage Differences and When to Rebalance

A lithium golf cart battery pack is made up of multiple individual cells working together. Ideally, every cell should charge and discharge at nearly the same voltage. Over time, small differences begin to appear between cells. This is called cell voltage imbalance.

Think of it like a golf team. If one player struggles badly, the entire team score suffers. Battery cells work the same way. Even if most cells are healthy, one weak cell can reduce the performance of the entire battery pack.

Many golf course operators only look at total battery voltage, but that doesn’t tell the full story. A pack may appear normal overall while hiding one or two cells that are drifting out of balance. This is especially important with lithium batteries because the battery management system (BMS) closely monitors individual cell voltage for safety.

One of the first signs of imbalance is shorter driving range. If one cell reaches its low-voltage limit too early, the BMS may shut down the battery even though the remaining cells still have usable energy left. That means carts may lose runtime long before the battery is truly empty.

For golf courses, this creates operational headaches. Carts may need charging more often, and staff may spend extra time swapping vehicles during busy tee times.

Imbalanced batteries also create charging issues. Some cells may reach full voltage faster than others, causing the charger or BMS to stop charging too early. Operators may notice inconsistent charging times or batteries that never seem to reach full capacity.

In some cases, the cart may suddenly stop charging altogether because the BMS detects unsafe voltage differences between cells.

Ignoring imbalance for too long can permanently damage the battery pack. Stronger cells are forced to work harder while weaker cells continue degrading. Over time, this uneven stress shortens overall battery lifespan and increases replacement costs.

For fleet managers, that means a lithium investment expected to last many years may fail much earlier than planned.

Most golf cart owners simply never check cell-level voltage data. Traditional lead-acid maintenance focused on water levels and corrosion, so many operators are unfamiliar with lithium diagnostics.

Another reason is that many modern lithium batteries still look “normal” from the outside even when imbalance is developing internally. The cart runs, the charger works, and there are no obvious warning signs at first.

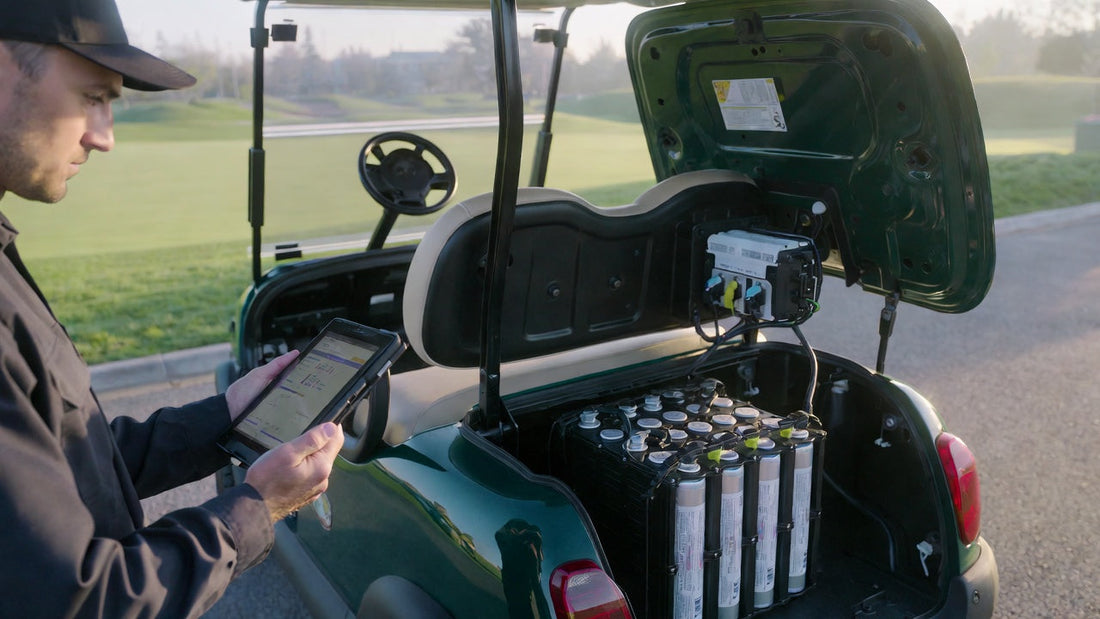

Fortunately, checking imbalance is easier today because many lithium batteries now include Bluetooth apps and built-in monitoring systems.

There are three common ways to check battery voltage differences:

• Digital multimeter
• Battery Management System (BMS) display
• Bluetooth mobile app for smart lithium batteries

Bluetooth apps are often the easiest option because they show individual cell voltages in real time.

The best time to check voltage differences is:

1. After a full charge and short resting period
2. Under load while the cart is operating

Some weak cells only reveal problems during acceleration or hill climbing, so testing under load is important.

Here’s a simple guideline for lithium golf cart batteries:

If voltage spread continues increasing over time, the battery may need balancing or further inspection.

Balancing restores voltage consistency between cells.

Passive balancing slowly drains energy from higher-voltage cells to match lower cells. This is the most common balancing method in golf cart batteries.

Active balancing is more advanced. Instead of wasting excess energy as heat, it redistributes energy between cells more efficiently.

For heavily used golf course fleets, better balancing systems can improve long-term battery consistency.

There’s no universal schedule, but a practical approach is:

• Monthly checks for heavily used fleets
• Quarterly checks for lighter-use fleets
• Immediate inspection after shutdowns or charging issues

Many modern lithium batteries automatically balance during charging, especially near full charge levels.

For golf course operators and procurement managers, battery selection should go beyond price alone.

A reliable supplier should provide:

• Access to cell-level voltage data
• Built-in balancing technology
• Strong warranty support
• Technical assistance for imbalance issues

These features help maintenance teams identify problems early before they become expensive failures.

As lithium adoption grows, smarter battery monitoring is becoming just as important as battery capacity itself.

Cell voltage imbalance is one of the most overlooked causes of golf cart battery performance problems. Small voltage differences between cells can reduce range, create charging issues, and eventually shorten battery life.

The good news is that modern lithium systems make monitoring easier than ever. With regular checks and proper balancing, golf course operators can extend battery lifespan and improve fleet reliability.

While established brands still dominate the market, newer lithium battery manufacturers are starting to focus more heavily on smarter balancing systems and long-term consistency. Widerway is one example of an emerging brand that golf course operators may want to watch as the industry continues evolving.

What is a normal voltage difference between lithium battery cells?

A healthy lithium battery pack usually stays below 0.02V difference between cells.

Can imbalance reduce golf cart range?

Yes. One weak cell can cause the entire battery pack to shut down early, reducing runtime.

Do all lithium golf cart batteries have balancing systems?

Most modern lithium batteries include some type of balancing function inside the BMS.

How often should fleets check cell voltage?

Heavy-use fleets should ideally check monthly, while lighter-use fleets can check quarterly.

Can rebalancing fix a damaged battery?

Rebalancing can correct mild voltage drift, but severely damaged cells may still require replacement.

Can hot weather increase battery cell imbalance?

Yes. High temperatures can accelerate differences between cells because heat affects charging and discharge behavior. Golf carts used daily in hot climates or stored in poorly ventilated charging areas may experience faster imbalance over time. That’s why regular voltage checks and proper charging practices are especially important for golf course fleets operating in warm environments.
