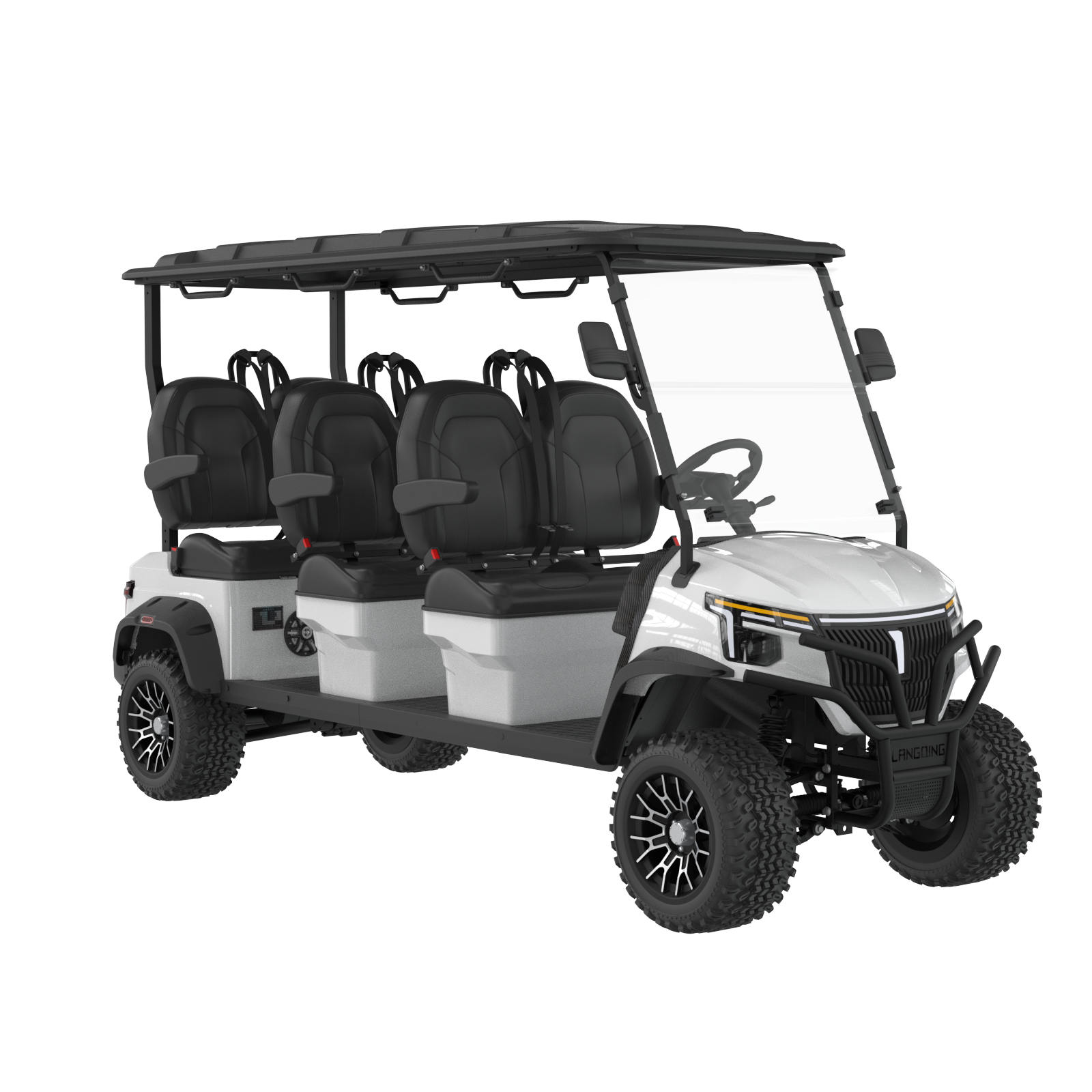

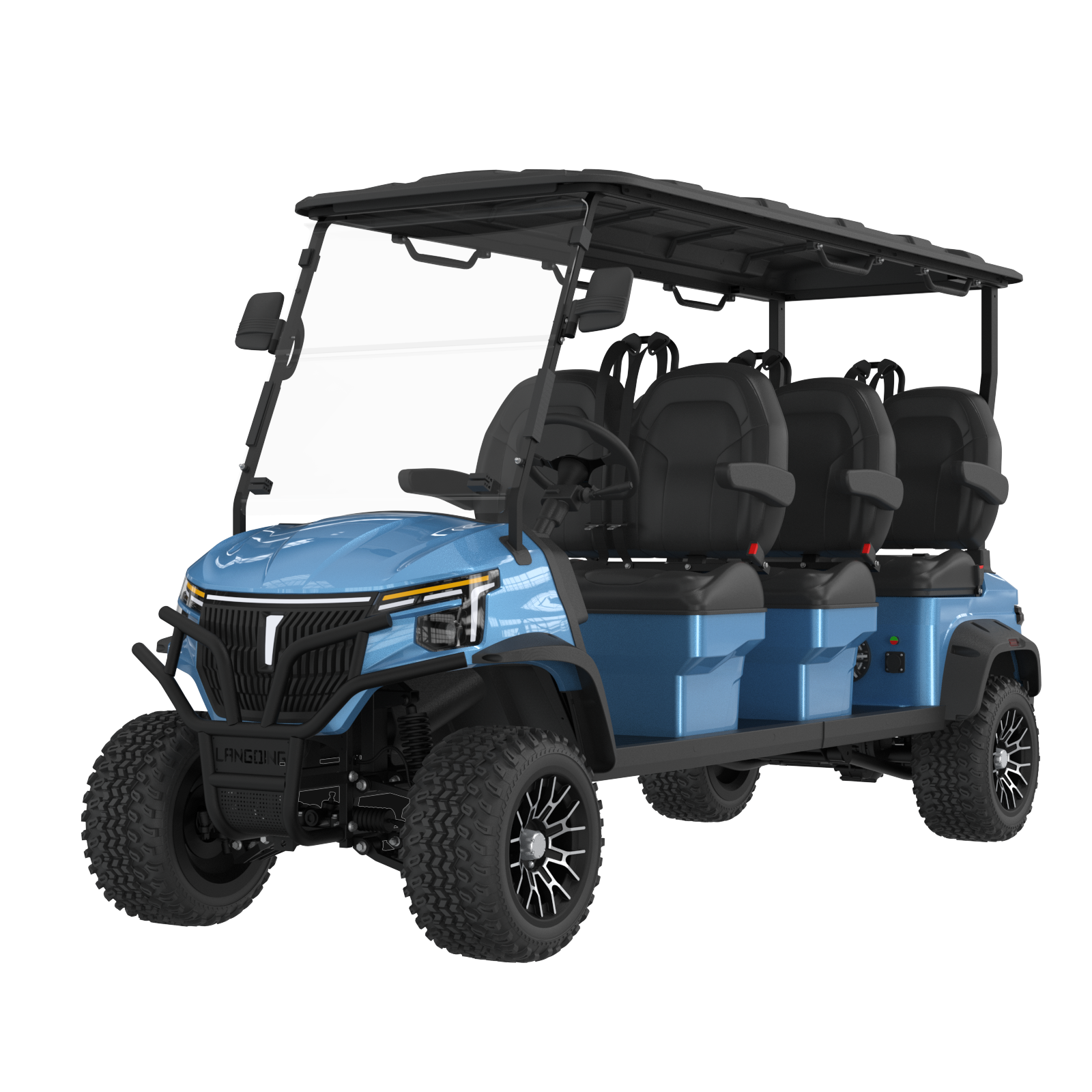

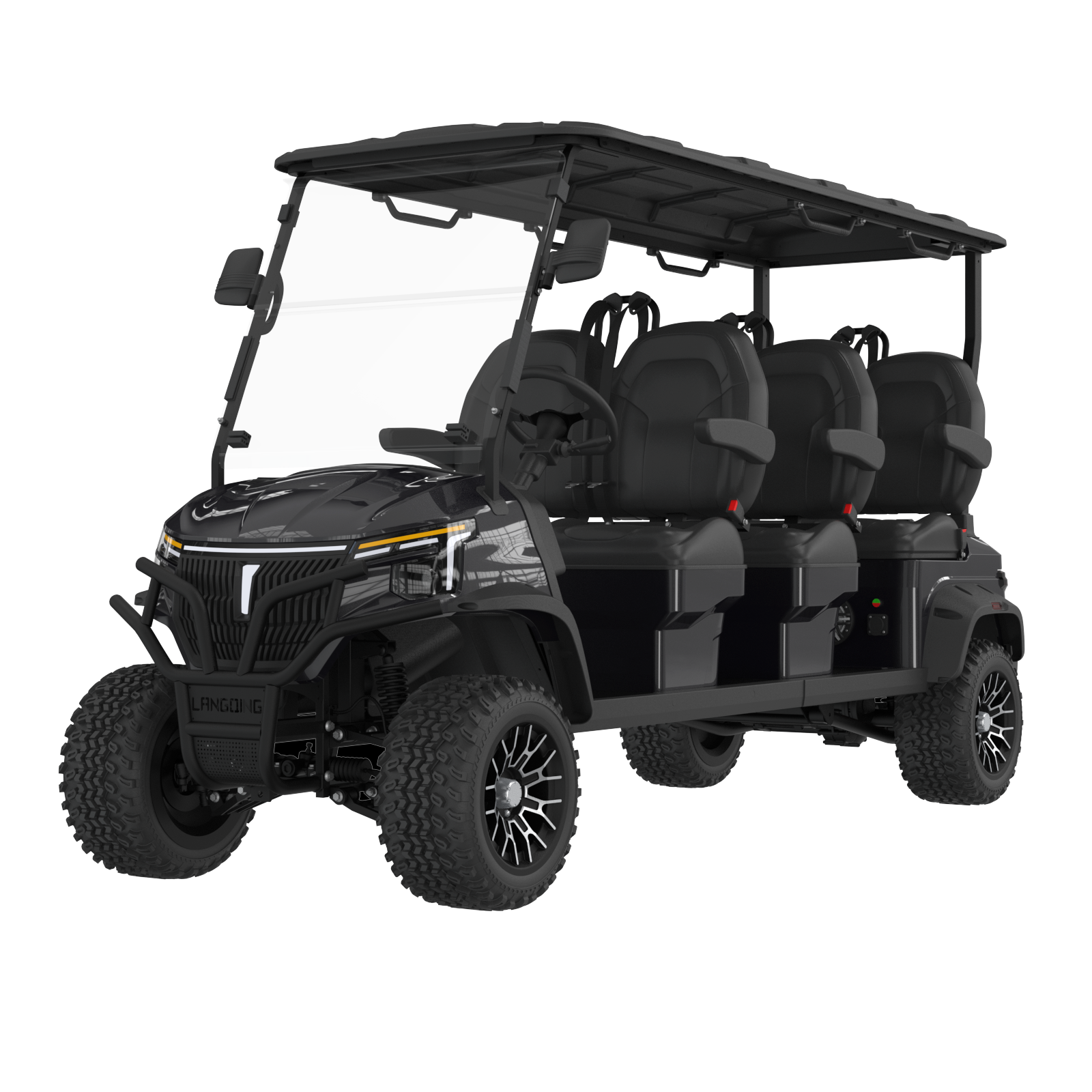

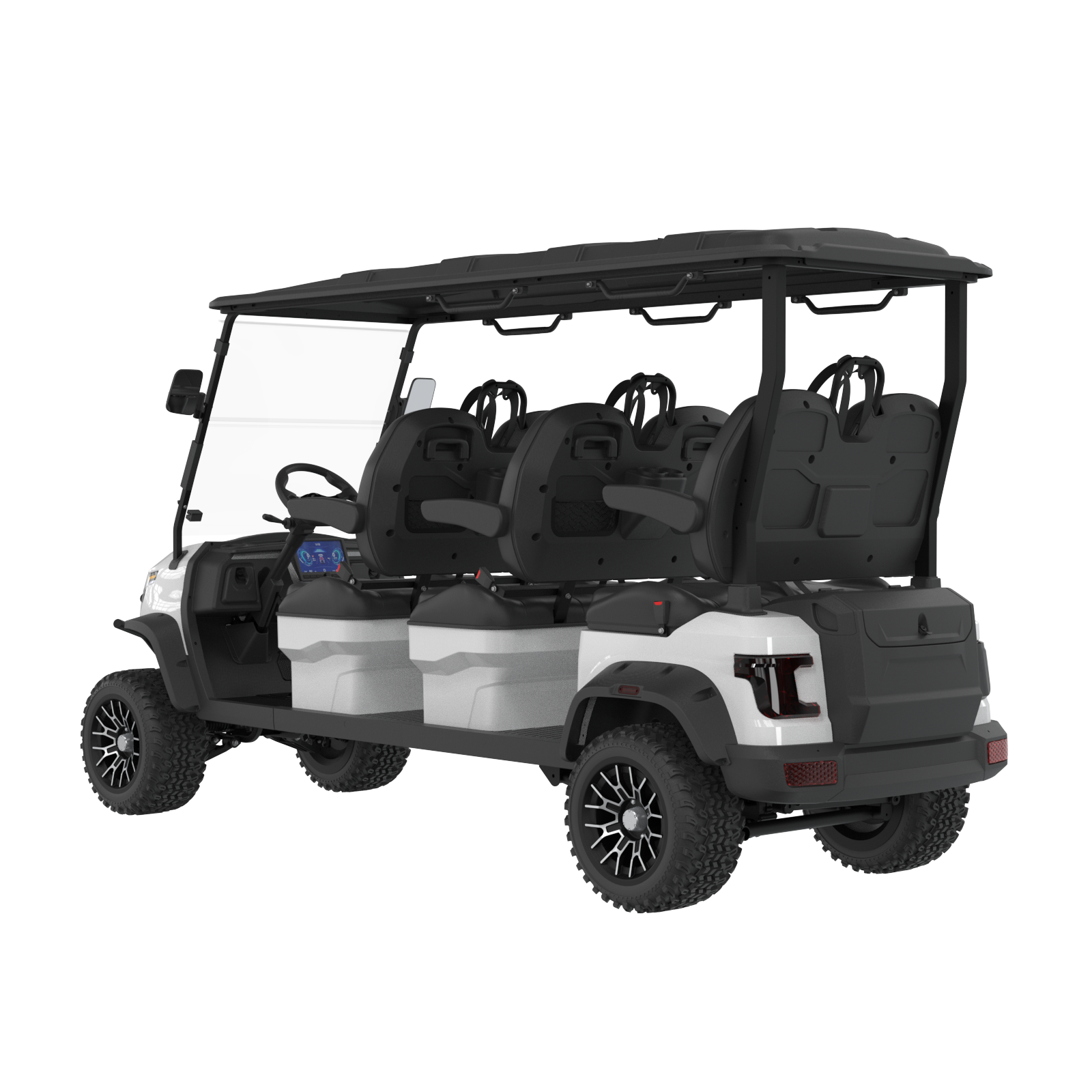

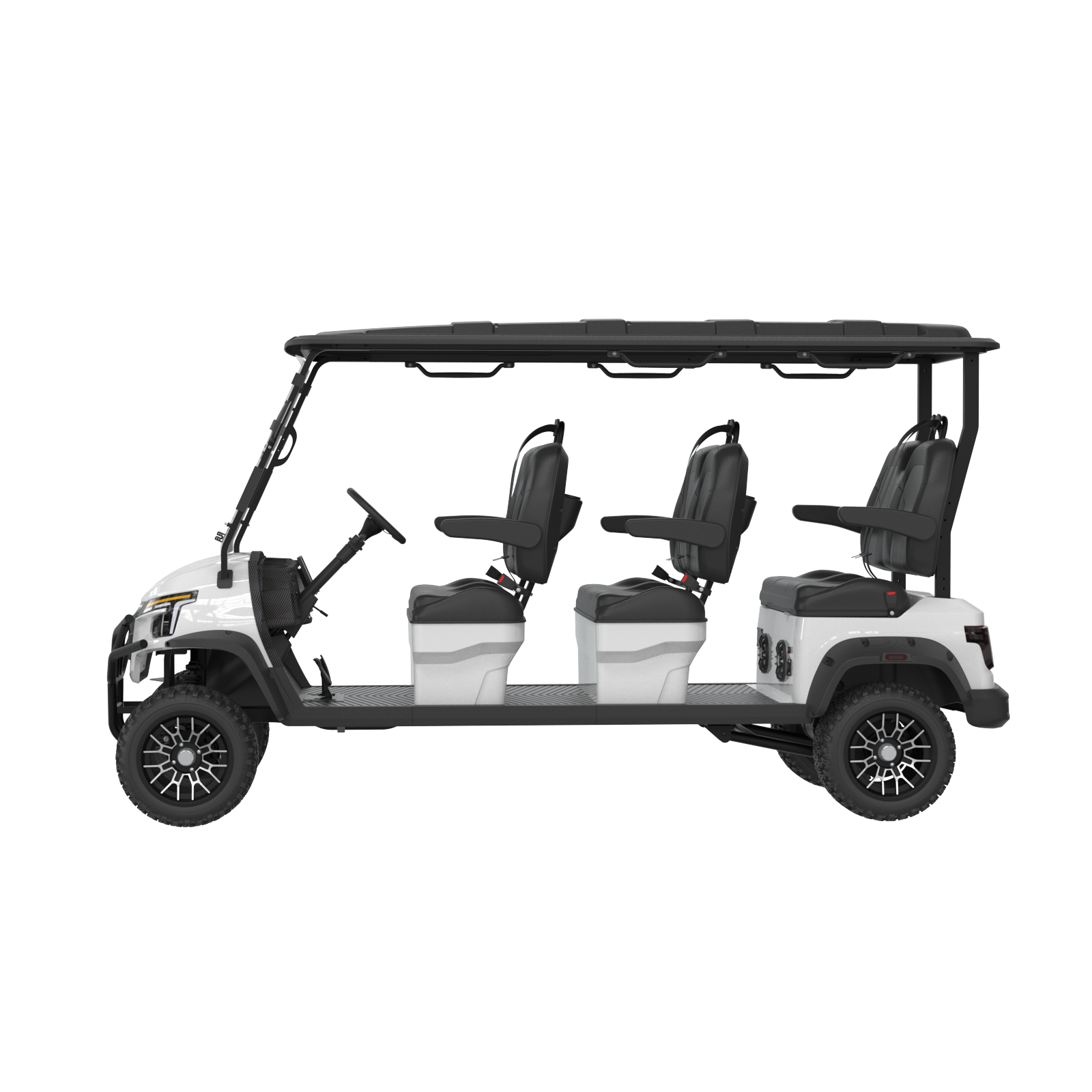

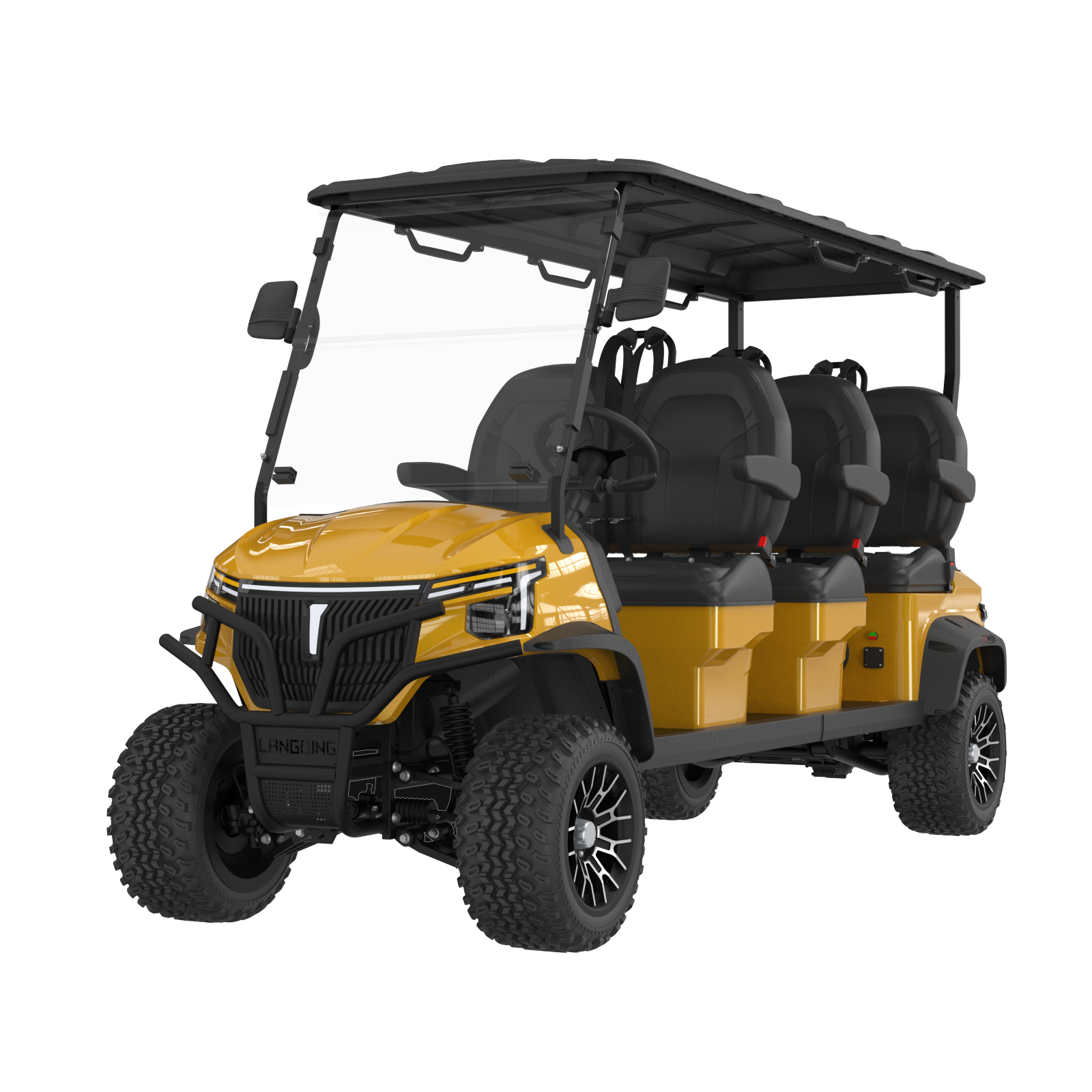

Widerway Golf Carts/Sightseeing Cars 6 Seaters-LQD065

2,500+ Verified Reviews!

Widerway Golf Carts/Sightseeing Cars 6 Seaters-LQD065

Name: Widerway Golf Carts/Sightseeing Cars 6 Seaters-LQD065
Brand: Golf-Carts
Availability: InStock

500+ Verified Partener!

Basic Parameter

Passenger capacity: 4 seats.

Max.Speed: 40km/h(Adujustable)

Range(loaded): 80km.

Climbing Ability(loaded): 15%.

Braking Distance: ≤5m.

Min.Turning Radius: ≤4.9m.

Min.Clearance: 180mm.

Power System

Motor: 48V/5KW AC motor

Controller: 48V 350A controller

Battery: 6pcs*8V/150Ah Lead-acid Batteries

Charger: AC220V To DC 48V 20A Smart On-board Charger

Charger time: 8 hours

Dimensions

L×W×H: 3850×1360×2040 mm

F/R Tread: Front1020mm/Rear1080mm

Axle Distance: 2880mm

Curb Weight: ≤697kg(with battery)

Max. loading: 1180kg

Worldwide shipping

Contact us Now

Product Description

Title

See How We Build. Watch How We Perform.

Step inside the heart of where quality is built. This exclusive video takes you on a behind-the-scenes tour of our state-of-the-art manufacturing facility, showcasing the precision, dedication, and advanced processes that go into every vehicle we create.

You will see more than just assembly lines; you will witness the meticulous craftsmanship and rigorous testing standards that define our brand. From the initial frame to the final inspection, every detail is perfected to ensure unmatched durability and reliability.

We invite you to explore the dedication that drives us to build exceptional mobility solutions.

Ready to specify your fleet?

Contact Us

⎮ LQD065 Electric Lifted Golf Cart

MODEL

LQD065

Qty/20'GP (Disassembled)

4 units

Qty/40'GP (Disassembled)

12 units

Basic Parameter

Passenger capacity

4 seats

Max.Speed

40km/h(Adjustable)

Range

80km

Climbing Ability(loaded)

≤15%

Braking Distance(base on20km/h)

≤5m

Min.Turning Radius

≦4.9m

Min.Clearance

180mm

Power System

Motor

48V/5KW AC motor

Controller

48V 350A controller

Battery

6pcs*8V/150Ah Lead-acid Batteries

Charger

AC220V To DC 48V 20A Smart On-board Charger

Charger time

8 hours

Dimensions

L×W×H

3850×1360×2040 mm

F/R Tread

Front1020mm/Rear1080mm

Axle Distance

2880mm

Curb Weight

≤697kg(with battery)

Gross Vehicle Weight

1180kg

Standard Configurations

Roof

High strength ABS injection molding (black)

Body

High-strength composite body (PT+PBT alloy injection-molded front cowl) with superior impact resistance

Chassis

High-strength sheet metal trapezoidal frame (electrophoresis + high-gloss)

Seats

High-density polyurethane foam seat cushion + microfiber leather

Dashboard

Injection moulded dashboard with electric lock switch, forward/reverse switch, alarm light switch, light signal switch, IP66 advanced multimedia 10-inch combination instrument, Bluetooth function, with vehicle detection function, USB charging port included, FM antenna, reversing camera.

Lighting & Signaling

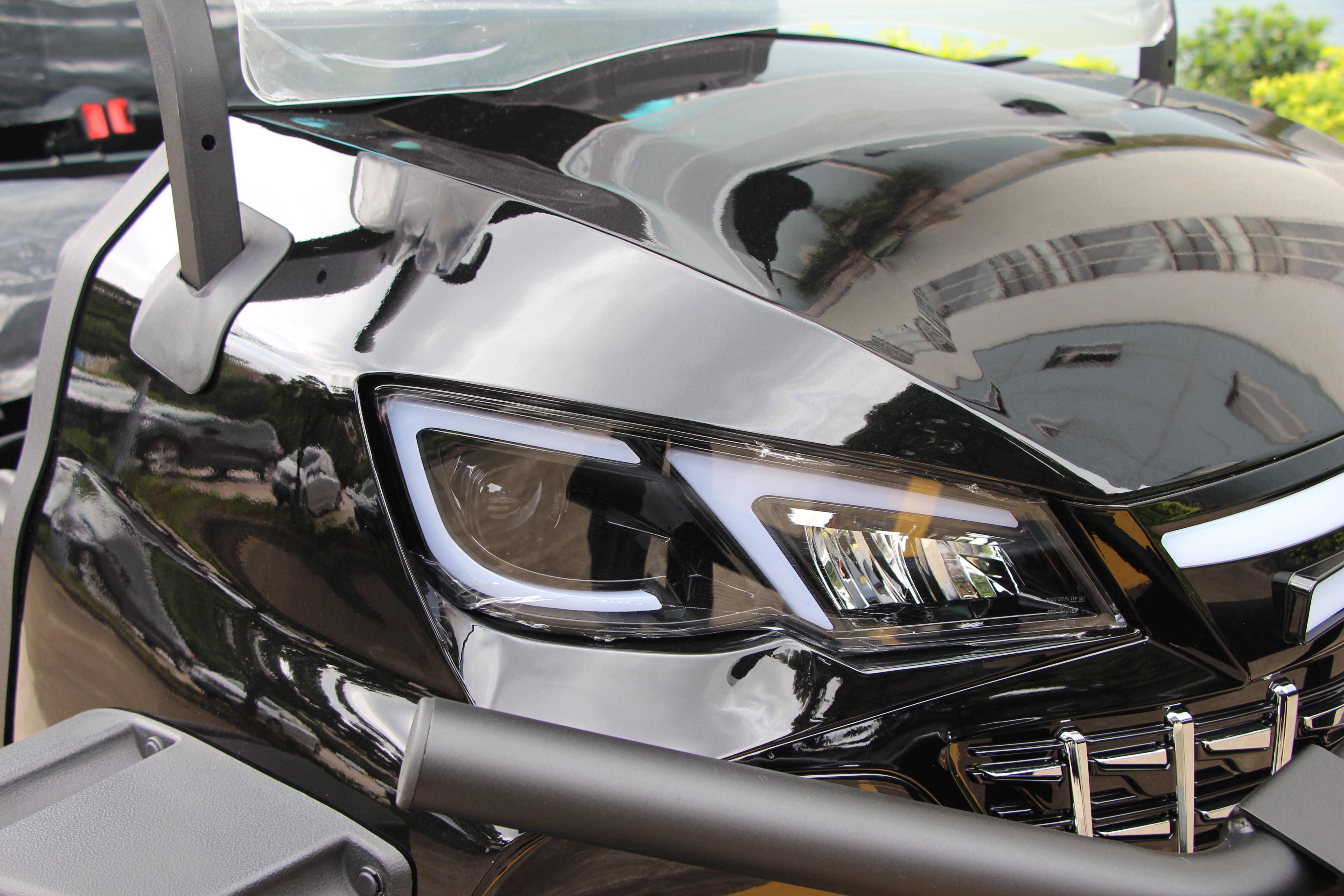

Front combination headlamps (with high/low beam, running lamps, overtaking lamps), turn signal lamps, rear combination lamps, electric horn, reverse buzzer

Steering

Dual-Pinion Rack-and-Pinion Steering System + Adjustable Steering Column

Brake system

Hydraulic dual-circuit four-wheel disc brakes with electronic parking

Front Suspension

Double swing arm independent front suspension, coil springs + cartridge hydraulic damping

Rear suspension

Trailing arm independent suspension with direct motor connection to integral rear axle

Windshield

DOT certified Folding acrylic glass windshield

Floor

Diamond pattern rubber flooring

Wheels

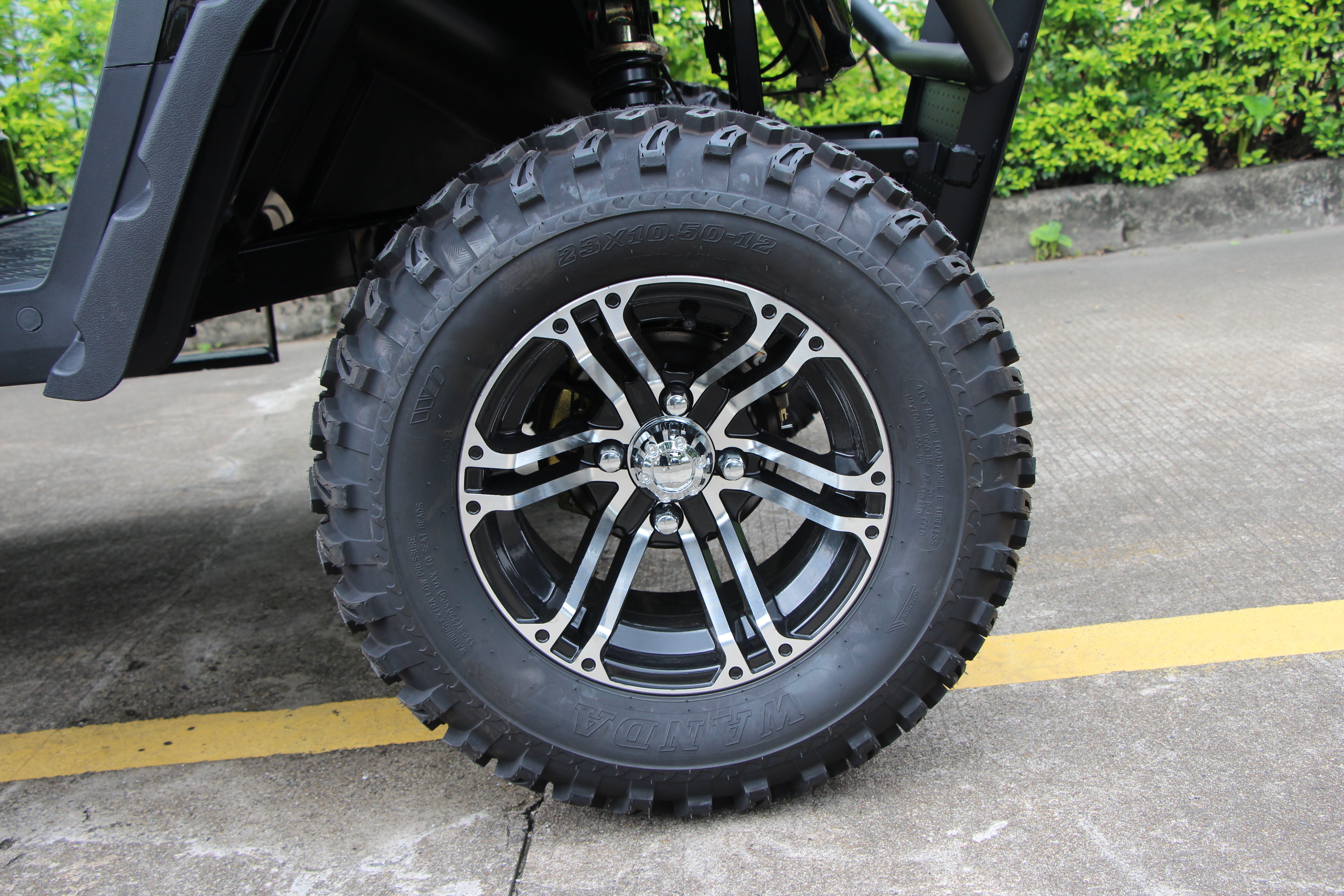

All Terrain 23*10.5-12 (4 Ply Rated)/Tires; P334.Rims: 529 aluminum rims

Front bumper

Iron Bumper

Steering wheel

Injection molded steering wheel with scoreboard (R40)

Other Parts

Mirrors on both sides, two-point retractable seat belts, roof handrail, passenger handrail, without centre mirror, without reversing camera

Color Option

White, Grey, Navy, Red, Khaki, Purple, Green,Cherry Red etc.

⎮ Function

1.HASDA IP66 waterproof advanced multimedia combination LCD screen with vehicle status information.

2.HASDA IP66 Full range hi fi speaker H058.

3.First class seats (overall foam seat cushion+solid high-grade imported leather).

4.High strength aluminum alloy oxidation anti-skid floor, corrosion resistance and aging resistance.

⎮ Suspension and braking system

1. Front suspension: double arm independent front suspension+spiral spring+cylindrical hydraulic shock absorption.

2. Rear suspension: integral rear axle,speed ratio 16:1,coil spring damping+cylindrical hydraulic damping+rear stabilizer bar.

3. Brake system:zero crossing rear axle:four-wheel hydraulic brake,four-wheel disc brake+electronic brake parking.

4. Steering system:two-way rack and pinion steering system,automatic clearance compensation function.

5. Frame: high-strength sheet metal trapezoidal frame (electrophoresis+highlight).

⎮ CART DETAILS

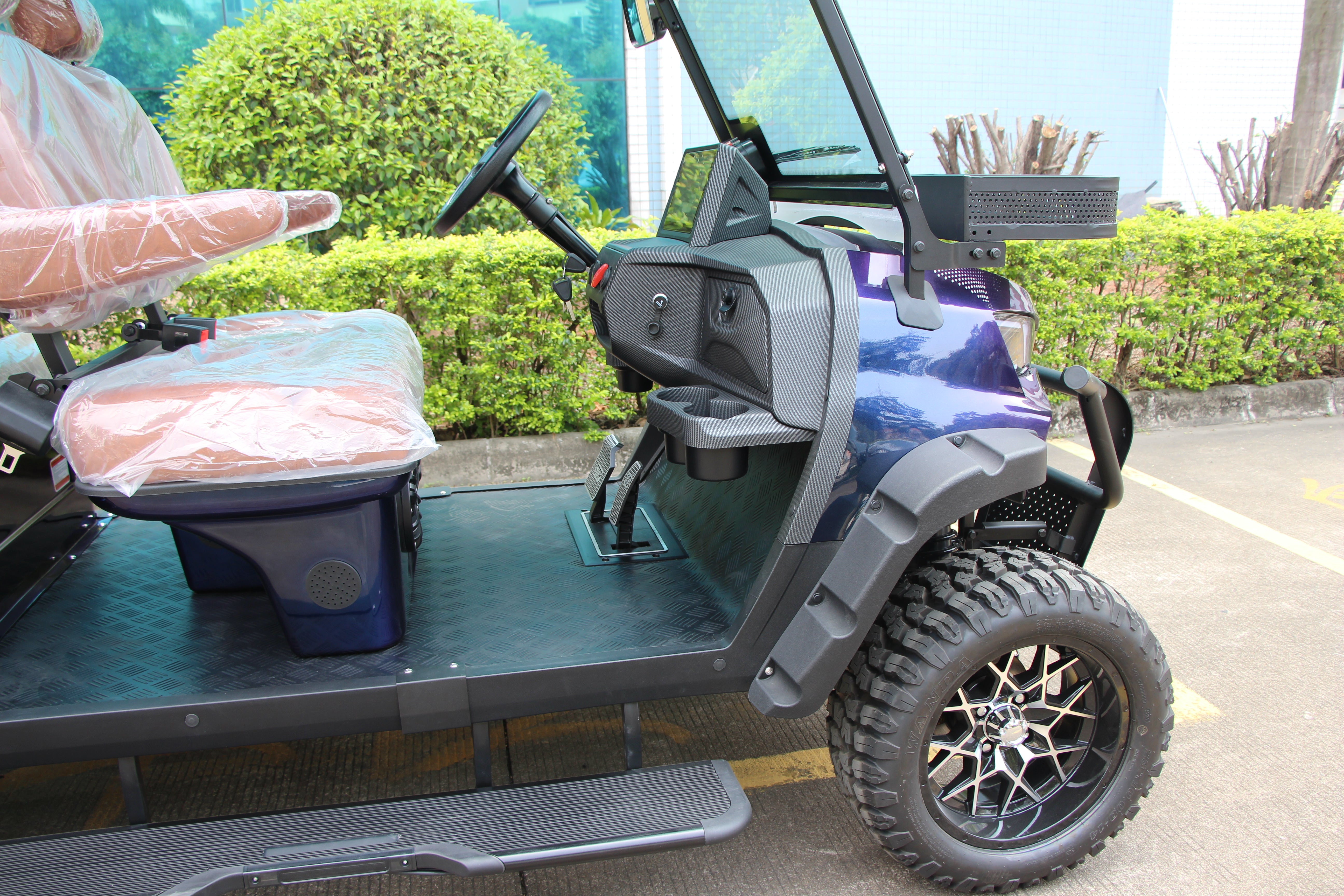

Aluminum floor

Special double A-arm suspension

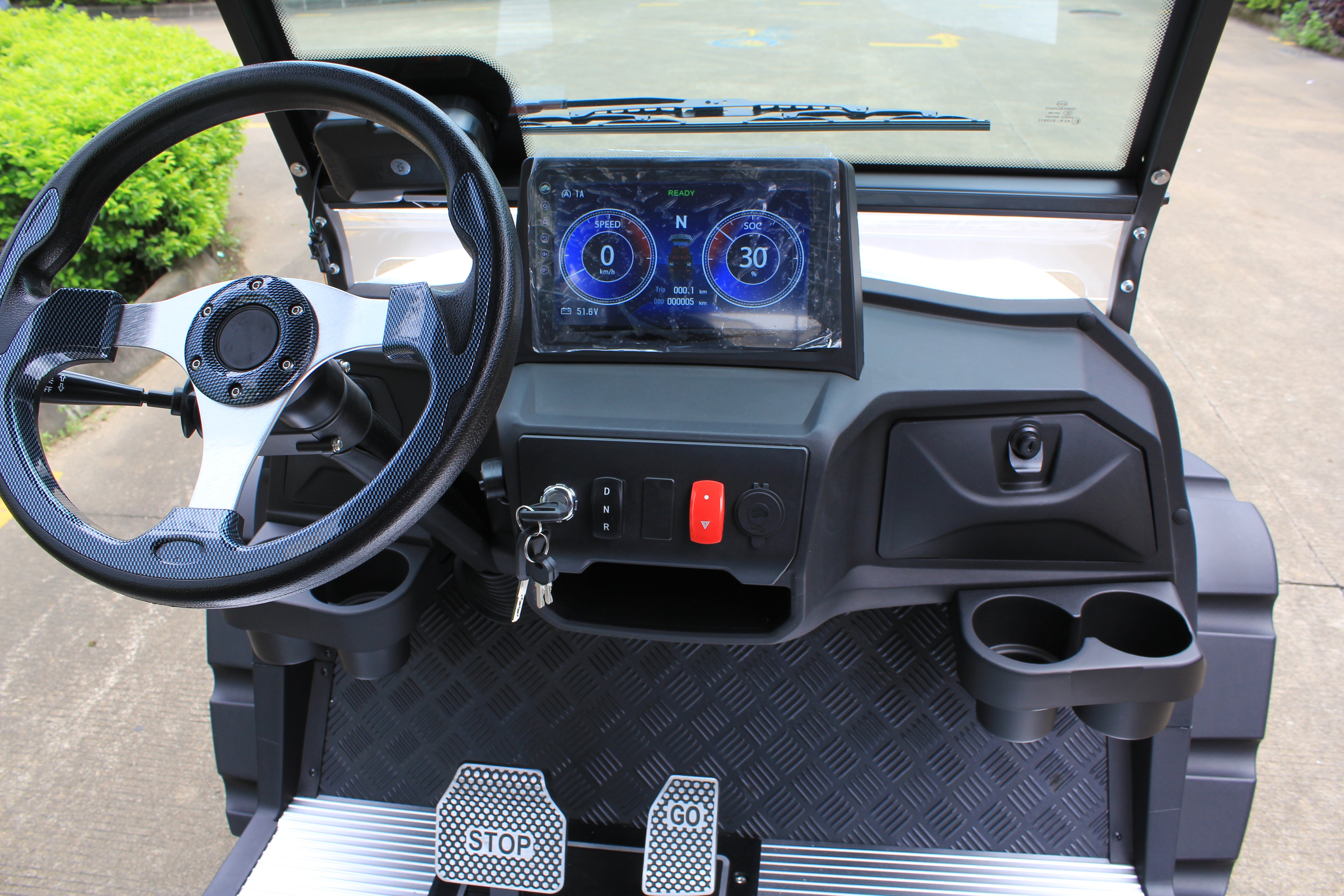

Steering wheel and dash board

Strong chassis

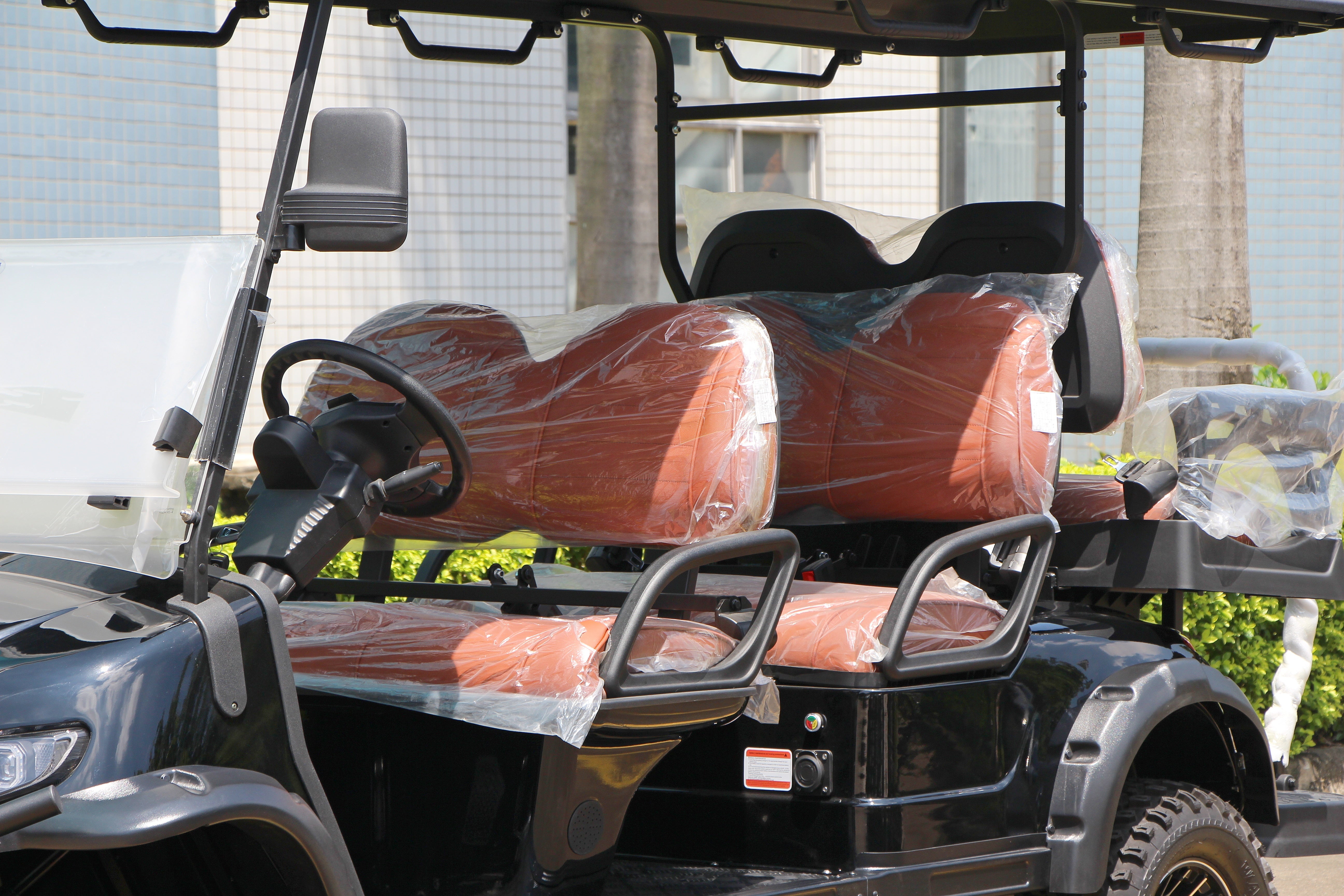

leatherette water-proof seats

Steering wheel and dash board

Dash board with 7" screen

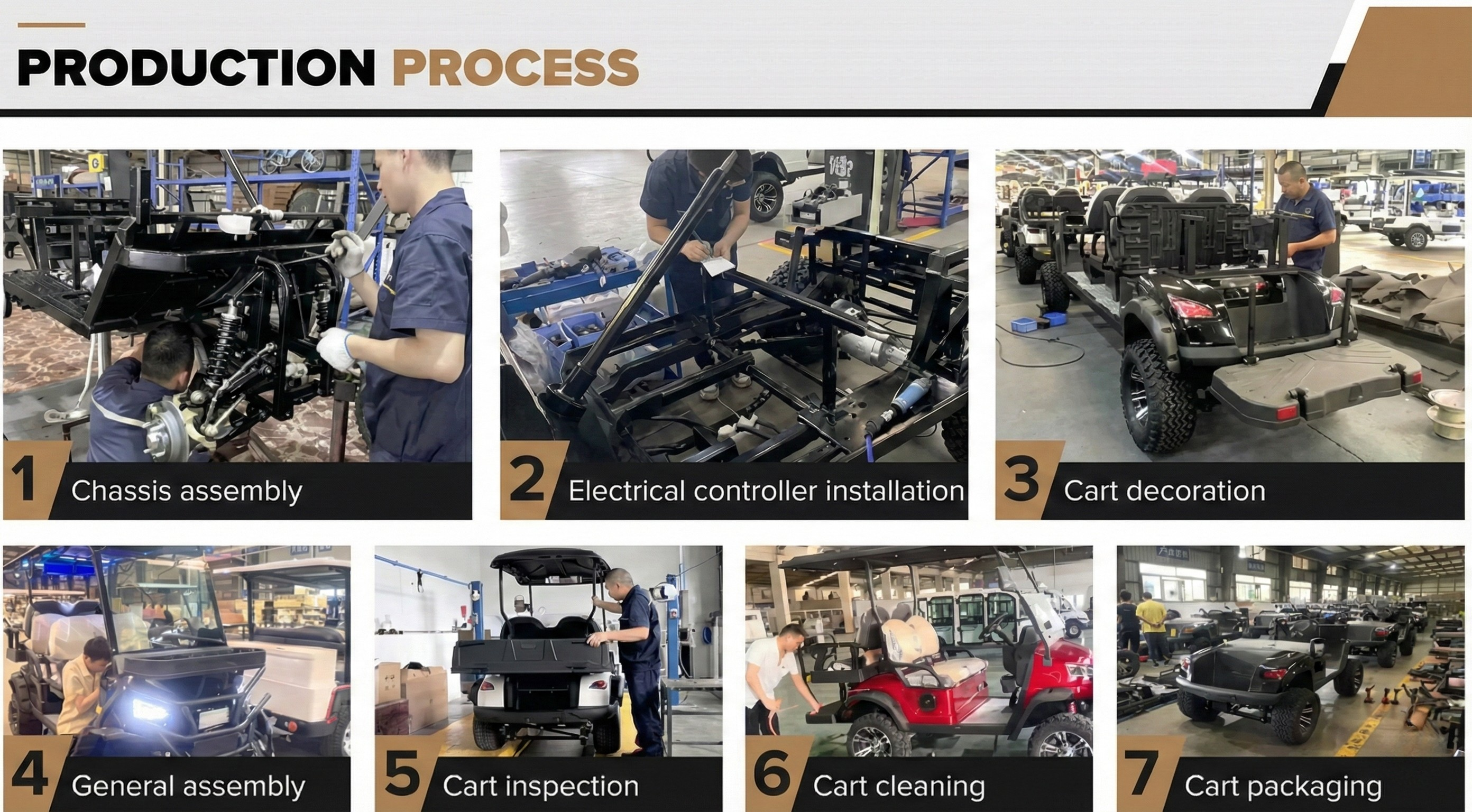

⎮ PRODUCTION PROCESS

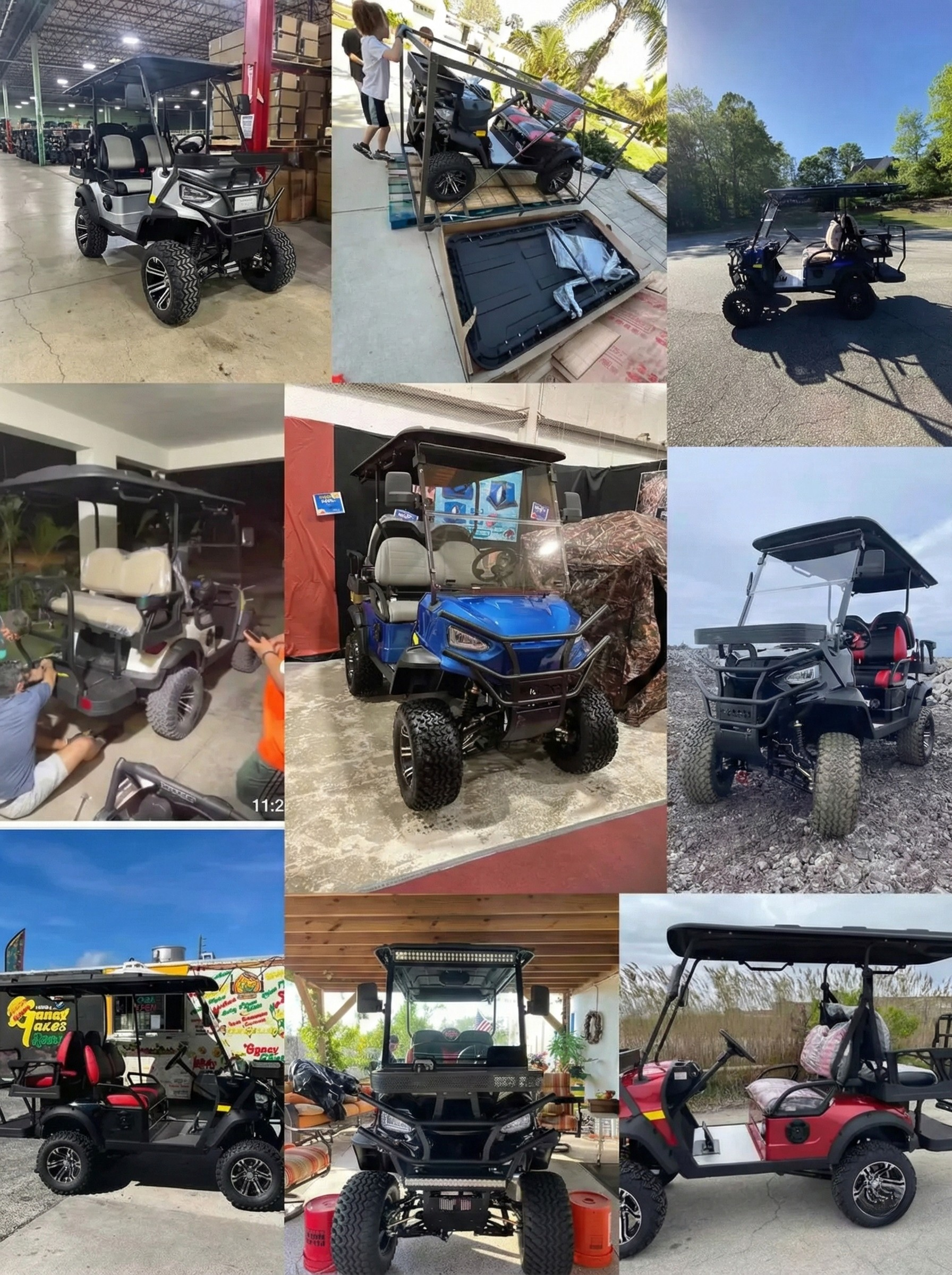

⎮ CUSTOMER REAL SHOW

⎮ EXHIBITION&CUSTOMERS VISITING

⎮ Company Information

Founded in 2000 and based in Guangzhou, Widerway is the earliest high-tech factory in China dedicated to the development and manufacturing of electric vehicles. It has grown to become one of the leading manufacturers in this field, operating a 200,000 sqm workshop with over 100 engineers and technicians, as well as more than 1,000 skilled workers. The company provides OEM/ODM services and personalized customization. Its product range includes golf carts, sightseeing buses, low-speed vehicles, hunting vehicles, multi-purpose vehicles, and more.

Since 2000, Widerway has accumulated extensive manufacturing experience in golf carts, supported by 4 production lines and a strong R&D team. To ensure reliable quality, the company uses renowned branded components such as American KDS motors, German Mahle motors, American Curtis controllers, Canadian Delta-Q chargers, among others.

All vehicles undergo a strict New Product Introduction (NPI) process, along with IQC, PQC, and QA procedures, and are 100% tested on the assembly line. Widerway’s processes are internationally recognized with valid certifications including ISO9001, EEC, and CE.

Through continuous technological breakthroughs and optimization, Widerway aims to bring its vehicles across the world.

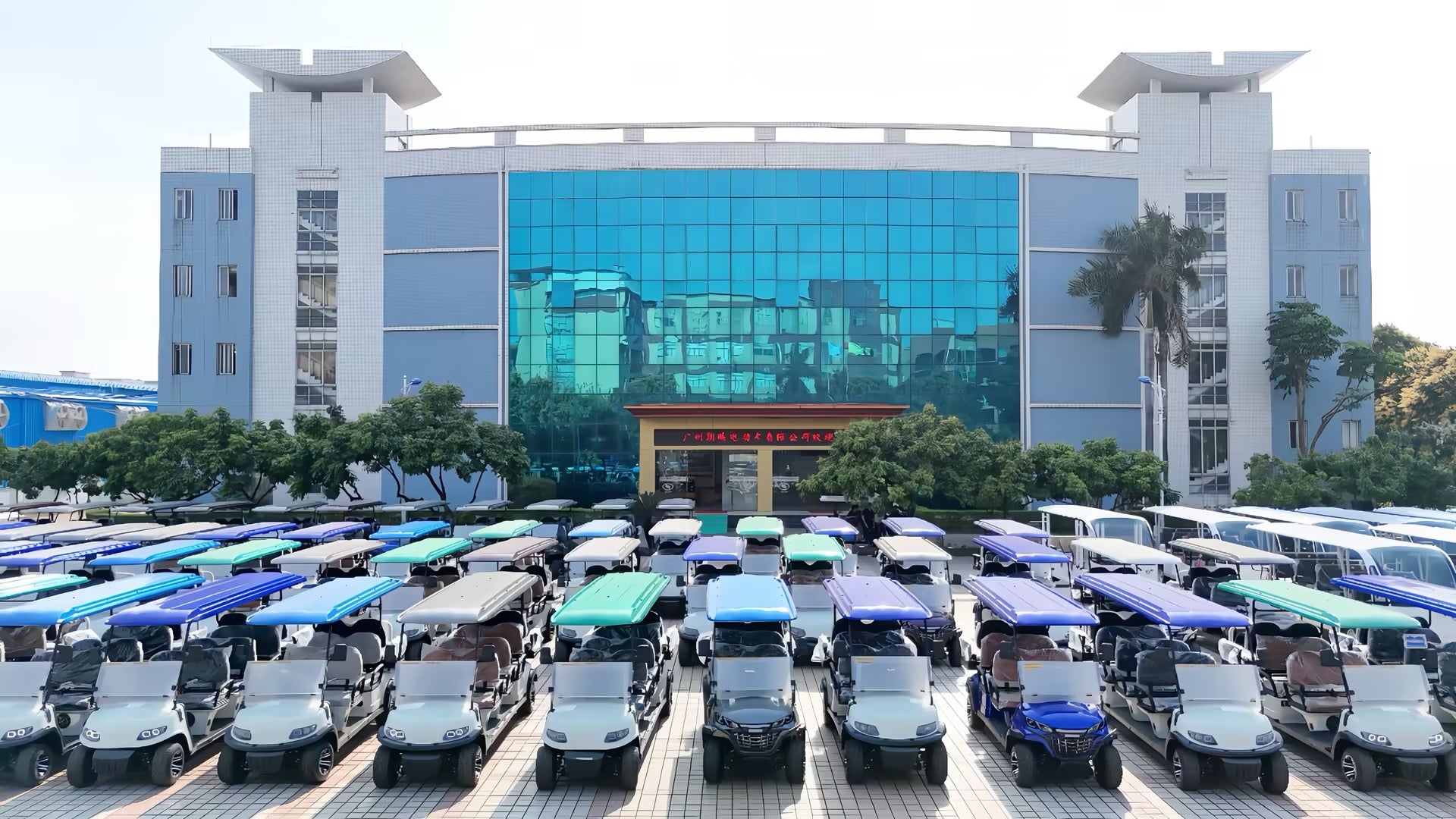

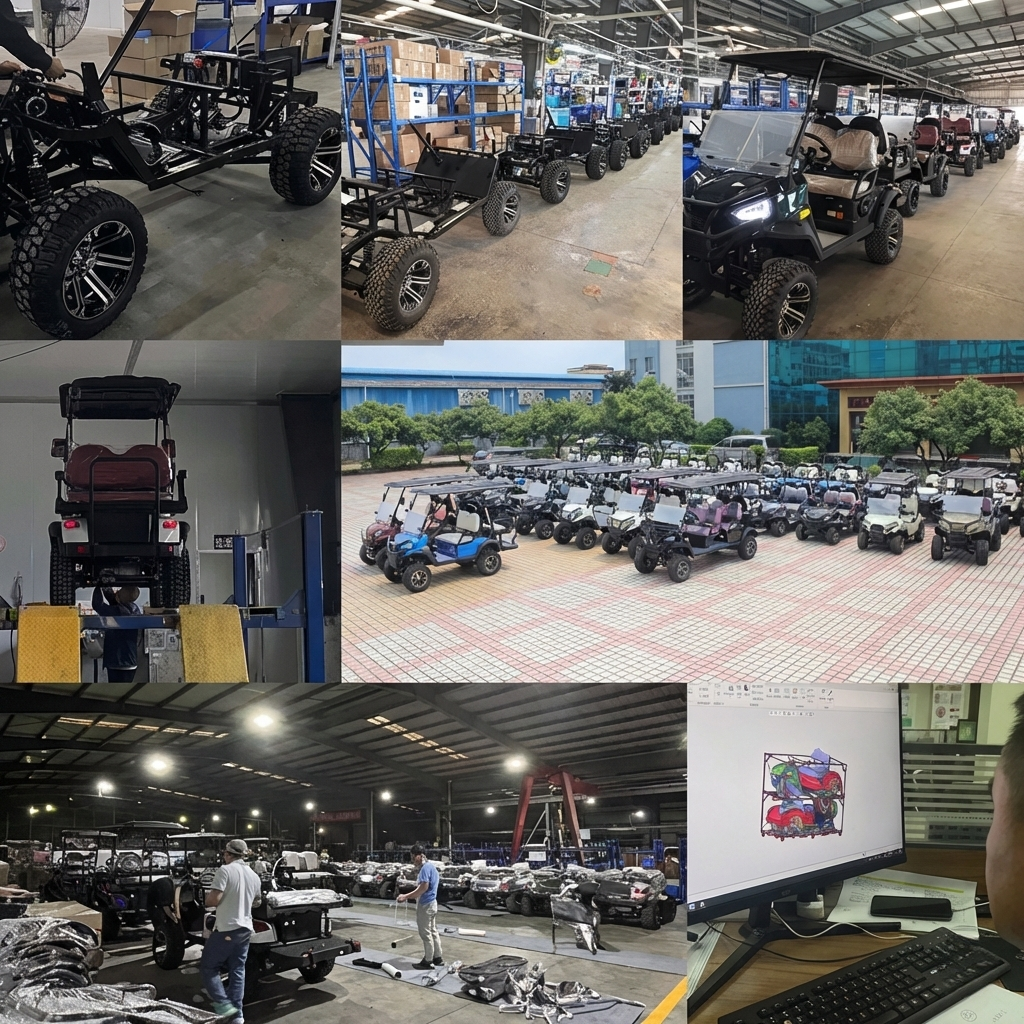

⎮ OUR WORKSHOP

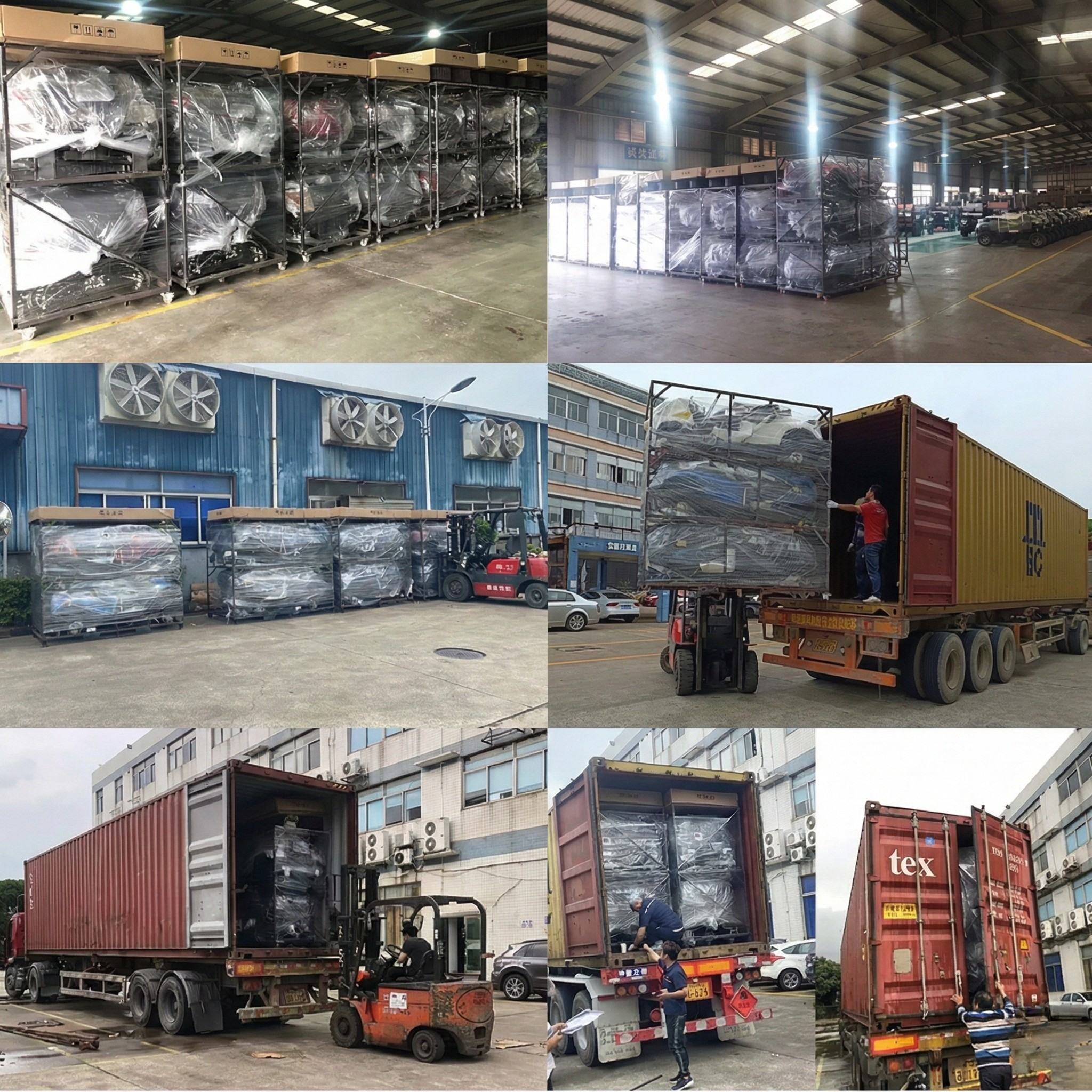

⎮ Packaging & Shipping

⎮ Our Services

We can be able to design and produce Top-Quality Mordern,fashion,attractive Golf Carts because of strong R&D team with more than 20 engineers and more than 300 sfaffs.Also,we have a outstanding service after sales to assure our cooperation successfully. The quotation service base on EXW,FOB,CFR and DDP are available for you.

⎮ FAQS

Q1. Why should I choose Widerway?
A: With over two decades of experience in the golf cart industry, we have built a strong team of more than 20 engineers and 200 skilled staff. Our substantial production capacity, advanced technology, and reliable after-sales service ensure that our golf carts are not only fashionable, smart, and practical but also economical—making them a popular choice worldwide.

Q2. What are your payment terms?
A: We generally require a 30% deposit via T/T to begin production. Throughout the process, we keep you updated with photos and videos so you can see the progress of your order.

Q3. What delivery terms do you offer?
A: We are flexible and support various delivery terms, including EXW, FOB, CFR, CIF, and DDP, depending on your needs.

Q4. What is your typical delivery time?
A: Orders usually take between 15 to 30 days after we receive your deposit. Exact timing may vary based on the product specifications and order quantity.

Q5. Do you accept custom orders and OEM/ODM services?
A: Yes, we can manufacture according to your provided samples or technical drawings. We welcome both OEM and ODM orders.

Q6. What is your minimum order quantity (MOQ)?
A: Our MOQ is as low as 1 unit. We also supply individual parts if needed.

Q7. Do you conduct quality tests before delivery?
A: Absolutely. We follow strict inspection standards and perform 100% testing on all golf carts before shipment.

Q8. What is your warranty policy?
A: Certain key components come with a warranty of more than 4 years. We also provide ongoing after-sales support and supply spare parts as needed.
