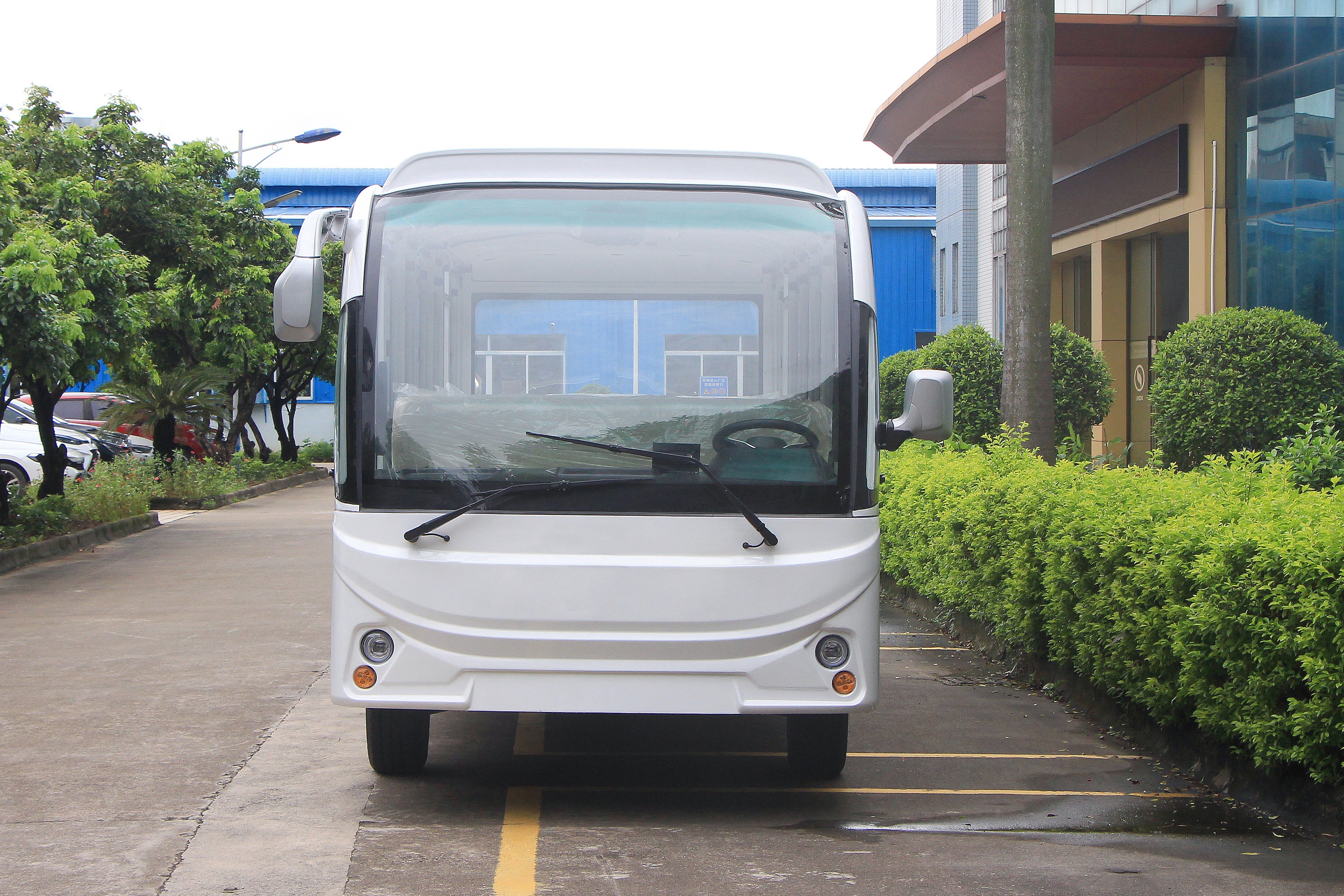

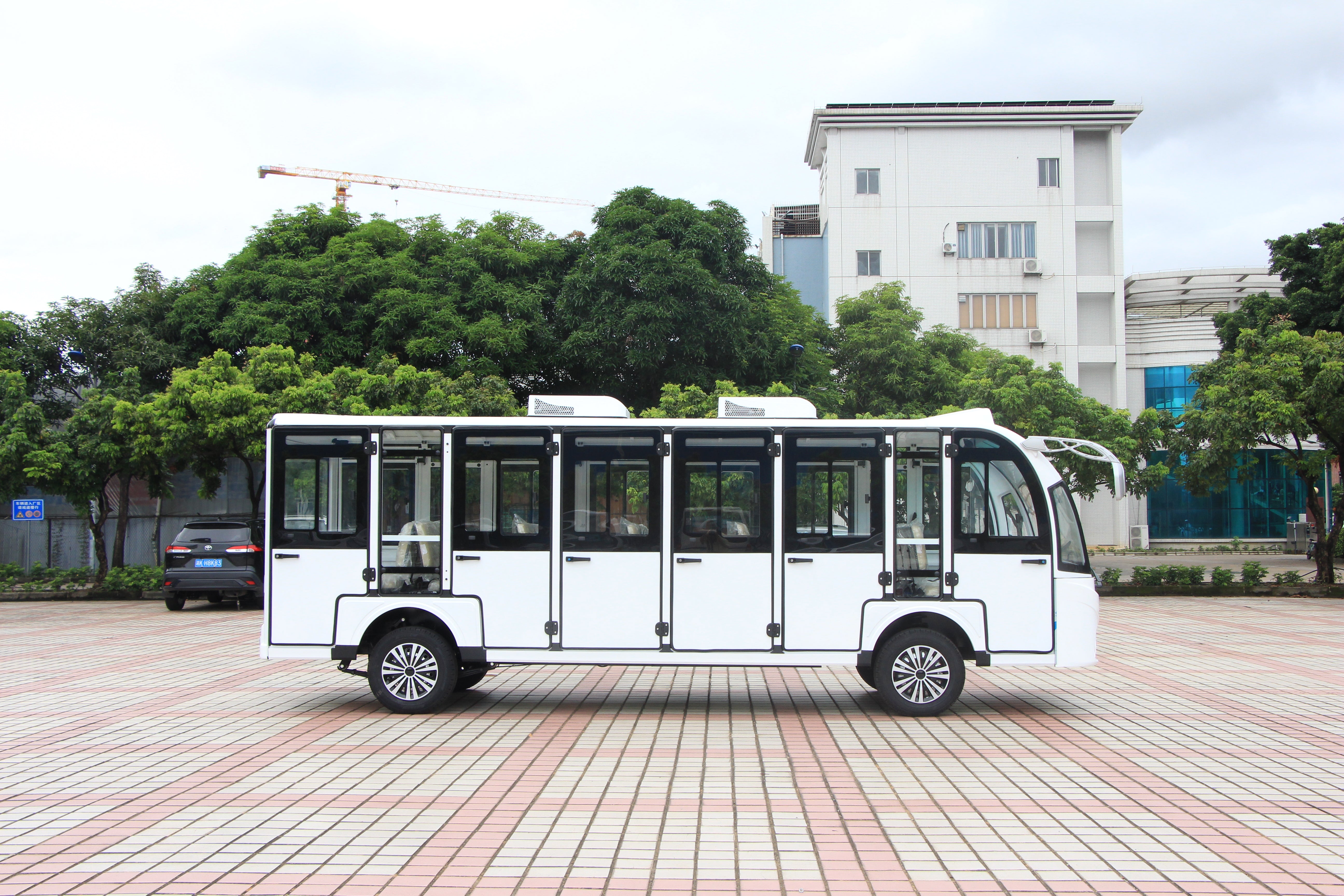

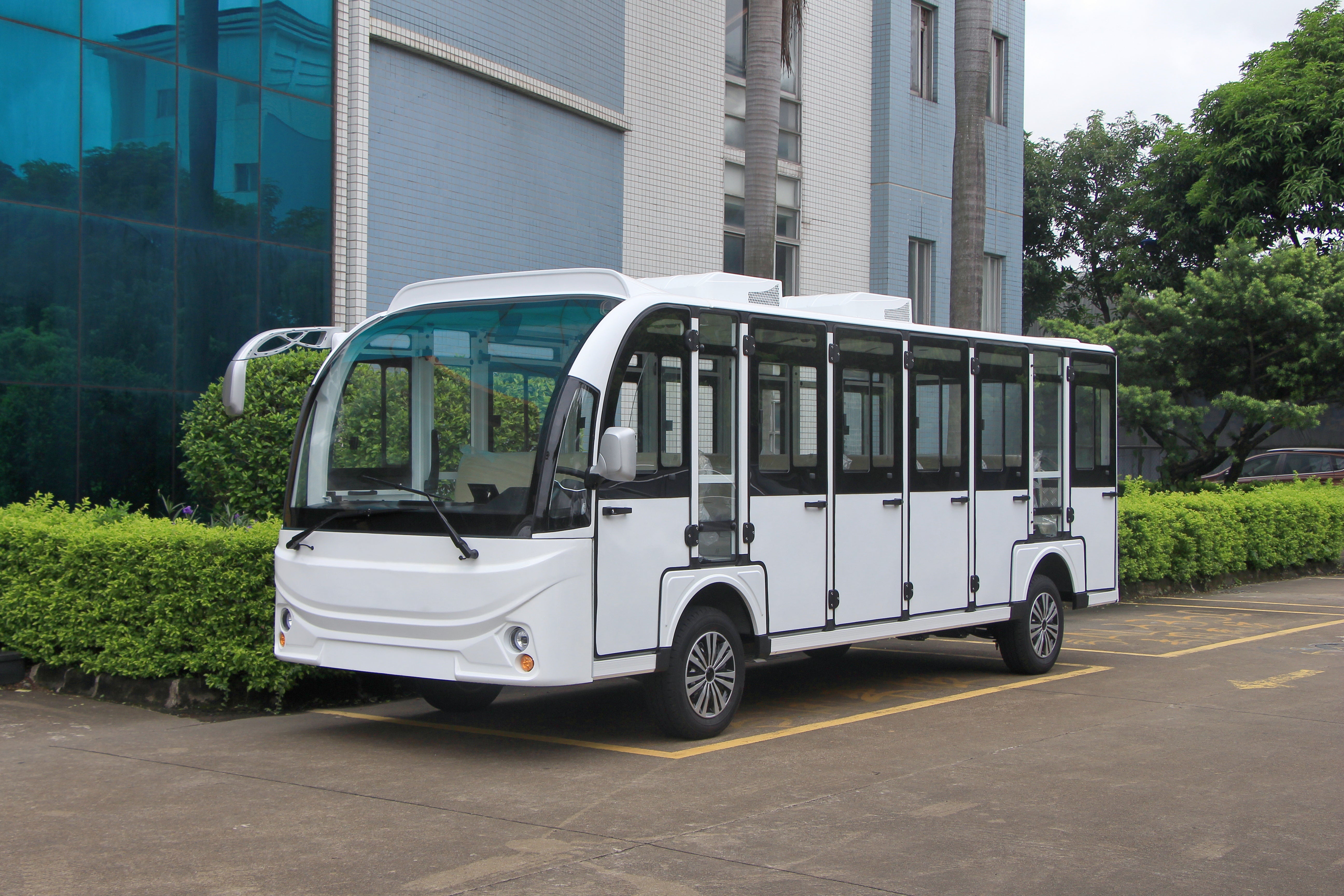

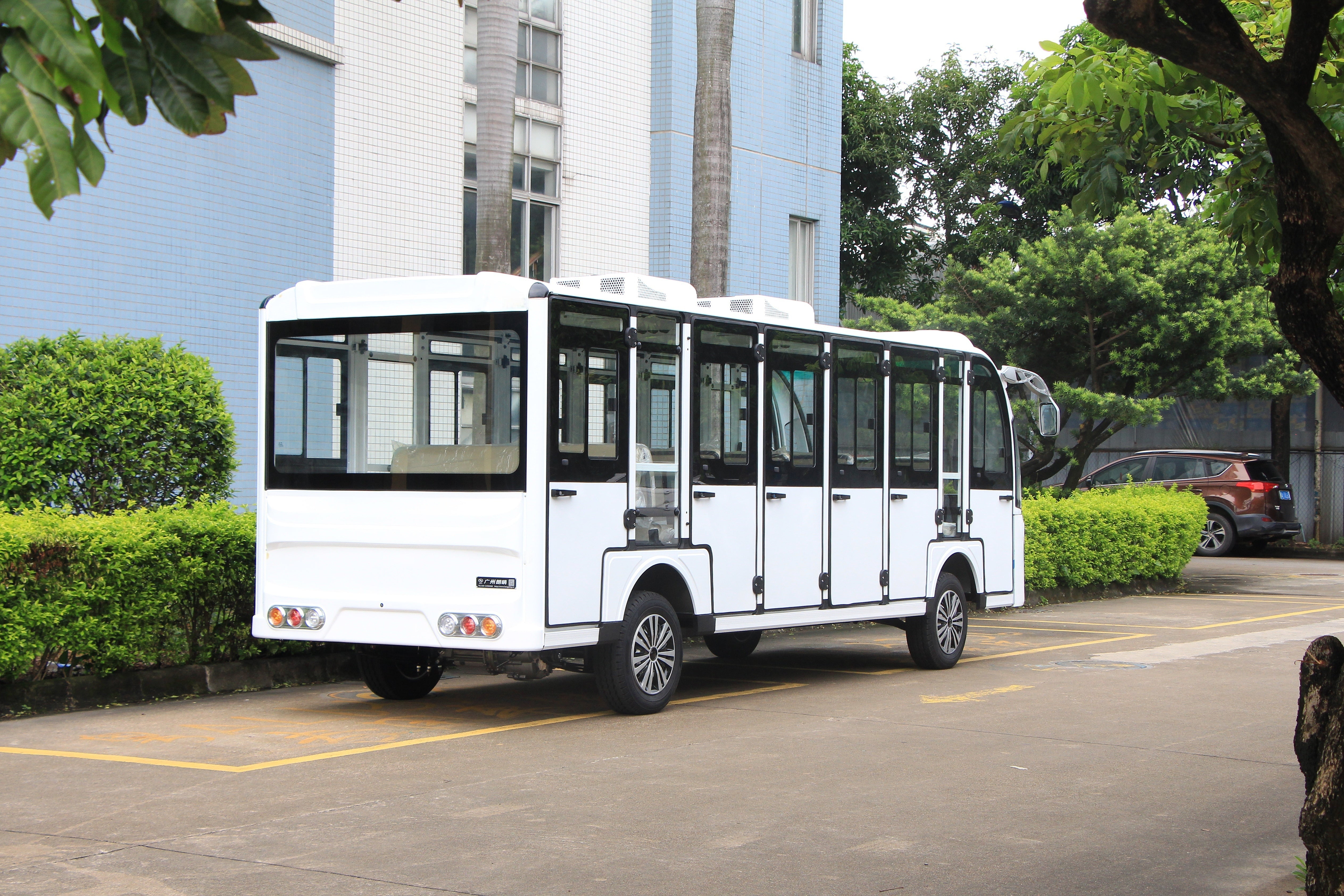

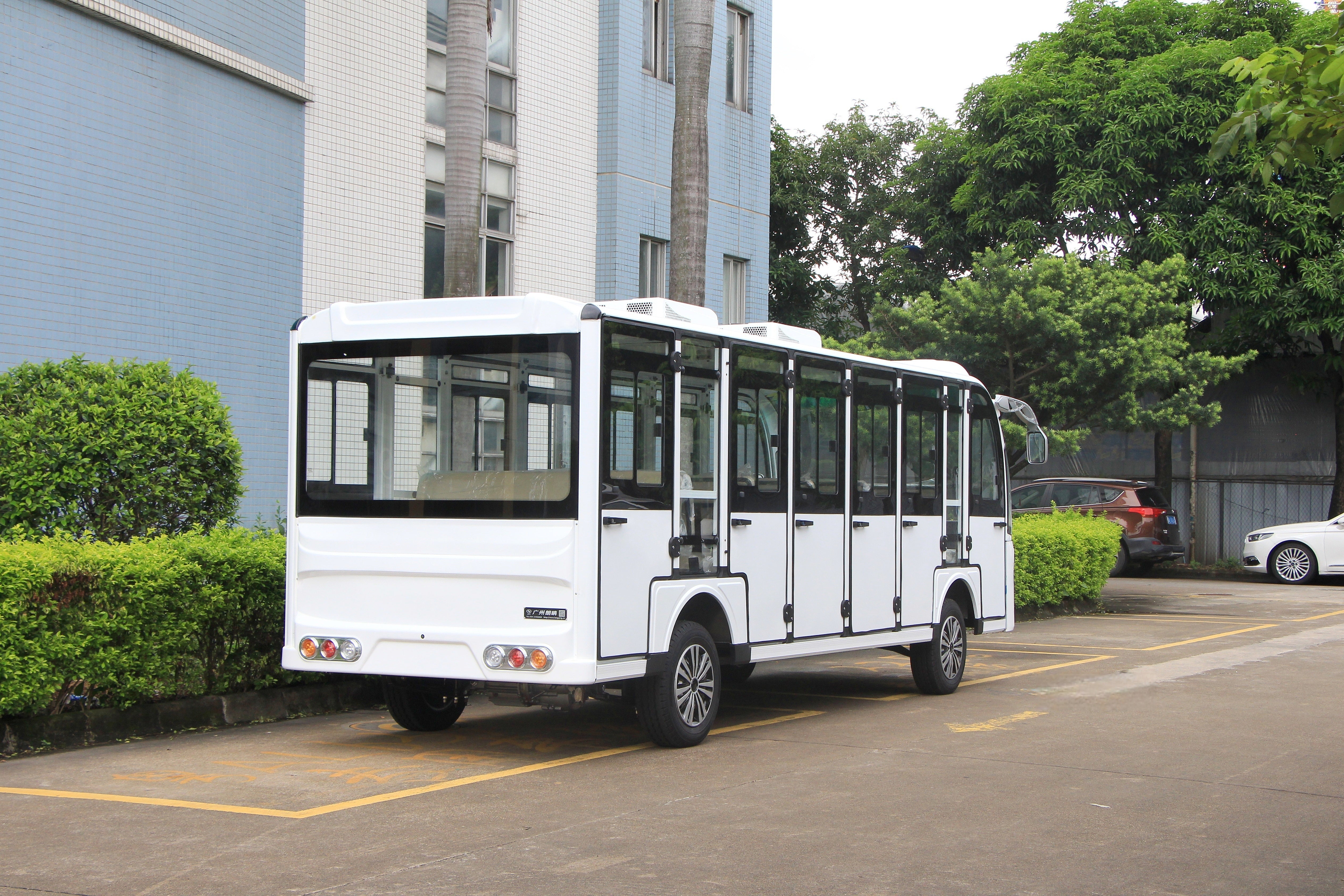

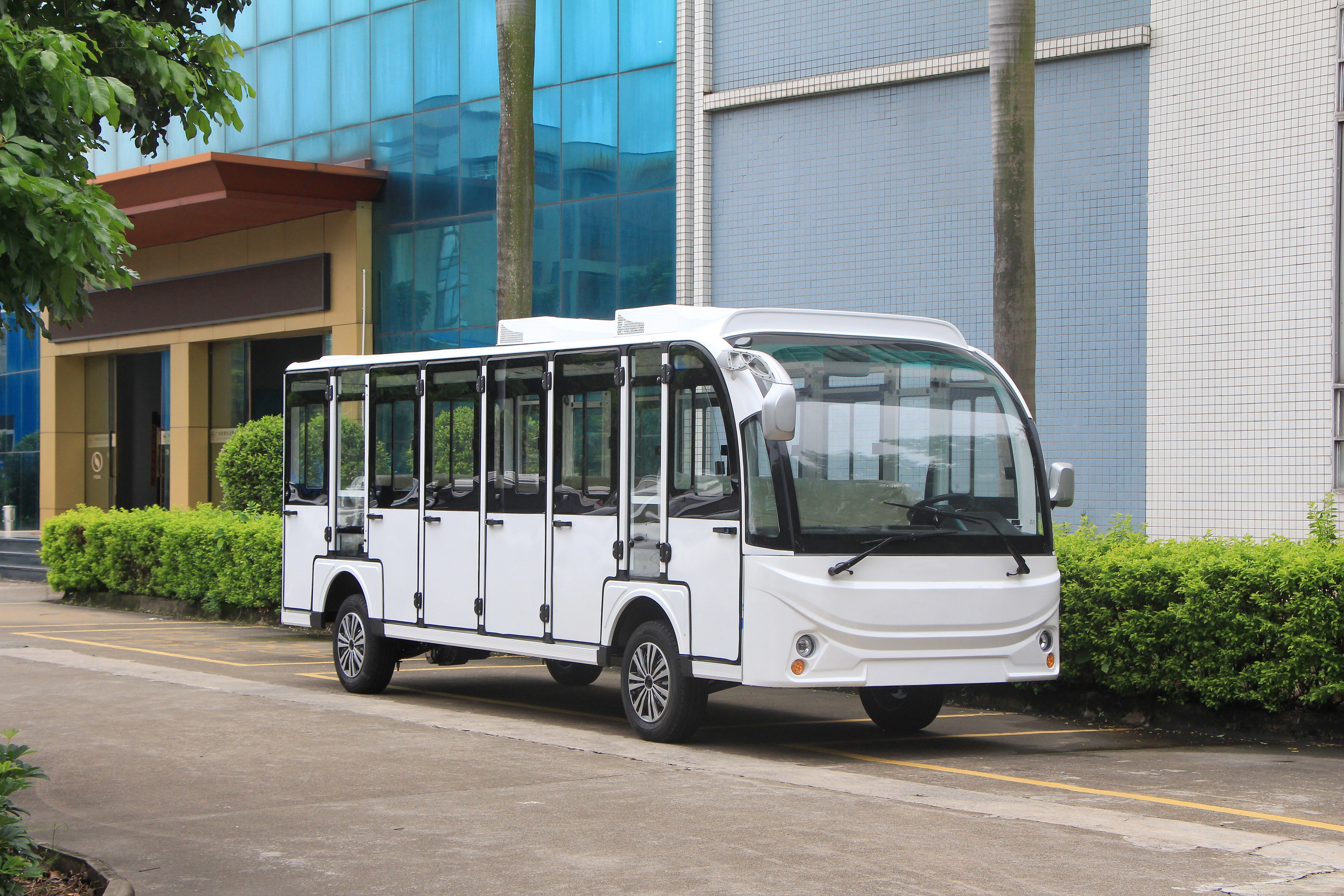

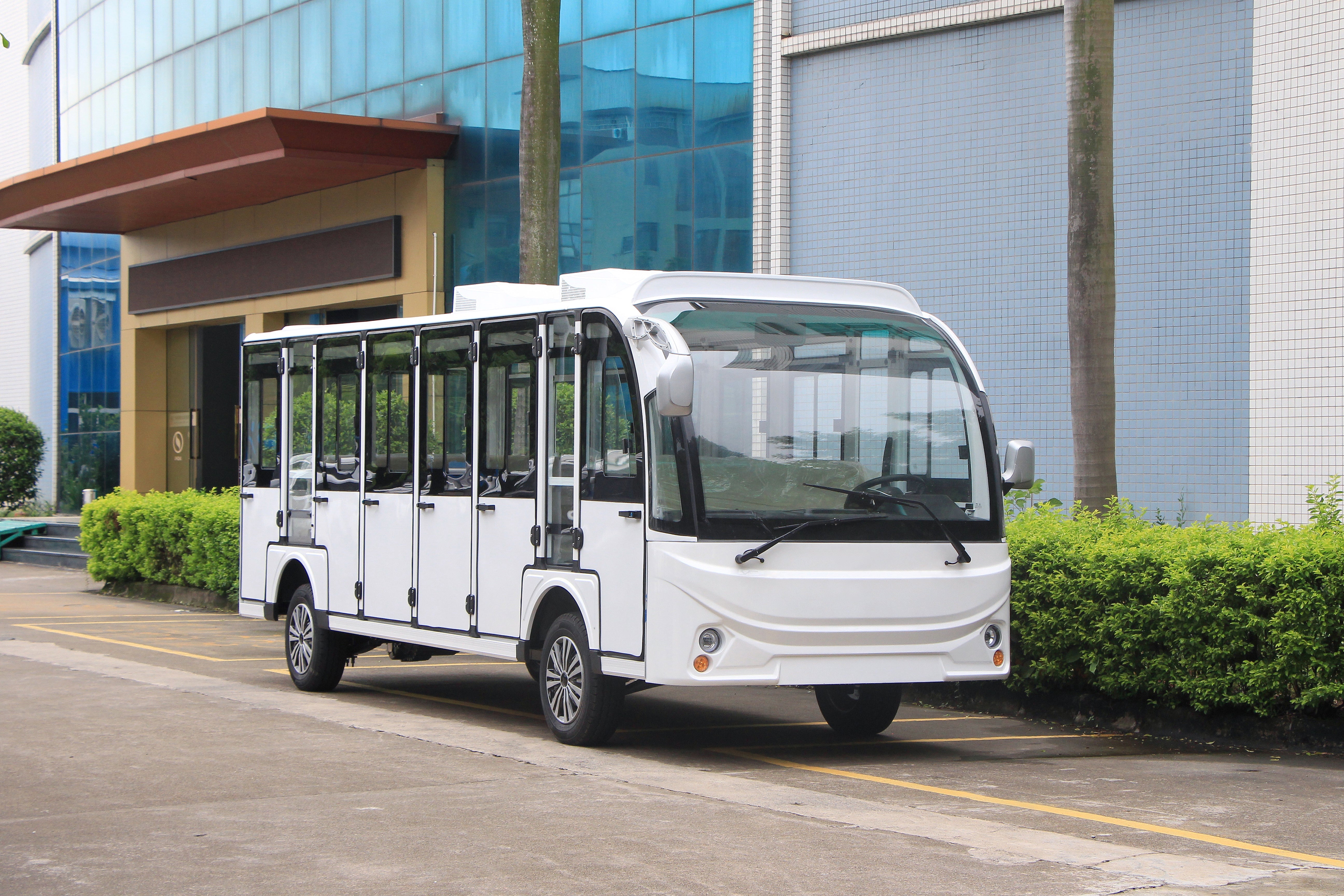

Widerway Sightseeing Car 23 Seaters-LQV23F

2,500+ Verified Reviews!

Widerway Sightseeing Car 23 Seaters-LQV23F

Name: Widerway Sightseeing Car 23 Seaters-LQV23F
Brand: Golf-Carts
Availability: InStock

500+ Verified Partener!

Basic Parameter

Passenger capacity: 23 seats.

Max.Speed: 30km/h(Adujustable)

Range(loaded): 160km.

Climbing Ability(loaded): 15%.

Braking Distance: ≤3.5m.

Min.Turning Radius: ≤7.5m.

Min.Clearance: 150mm.

Power System

Motor: 96V/20kw AC motor

Controller: 96V/660A controller

Battery: 96V 460Ah Lithium batteries

Charger: AC220V To DC 96V 60A Smart On-board Charger

Charger time: 7 hours

Dimensions

L×W×H: 6220*1850*2270mm

F/R Tread: Front1540mm/Rear1540mm

Axle Distance: 3700mm

Curb Weight: 2050kg

Max. loading: 4000kg

Worldwide shipping

Contact us Now

Product Description

Title

See How We Build. Watch How We Perform.

Step inside the heart of where quality is built. This exclusive video takes you on a behind-the-scenes tour of our state-of-the-art manufacturing facility, showcasing the precision, dedication, and advanced processes that go into every vehicle we create.

You will see more than just assembly lines; you will witness the meticulous craftsmanship and rigorous testing standards that define our brand. From the initial frame to the final inspection, every detail is perfected to ensure unmatched durability and reliability.

We invite you to explore the dedication that drives us to build exceptional mobility solutions.

Ready to specify your fleet?

Contact Us

⎮ LQV23F Electric Vehicle Sightseeing Car

MODEL

LQV23F

Qty/20'GP (Nude Packing)

1 unit

Basic Parameter

Passenger capacity

23 seats

Max.Speed

≤30km/h（Adjustable）

Range

160km

Climbing Ability(loaded)

≤15%

Braking Distance(base on20km/h)

≤3.5m

Min.Turning Radius

≦7.5m

Min.Clearance

150mm

Power System

Motor

96V/20kw AC motor

Controller

96V/660A controller

Battery

96V 460Ah Lithium batteries

Charger

AC220V To DC 96V 60A Smart On-board Charger

Charger time

7 hours

Dimensions

L×W×H

6220*1850*2270mm

Frame Size

1700x400x250mm

F/R Tread

Front1540mm/Rear1540mm

Axle Distance

3700mm

Curb Weight

2050kg

Gross Vehicle Weight

4000kg

Standard Configurations

Roof

Reinforced composite material skin + aluminum alloy frame + sheet metal front windshield; featuring light weight, anti-aging and resistance to fading.

Body

High-strength fiberglass front enclosure with superb impact resistance.

Chassis

High-strength steel frame-type longitudinal beam chassis with electrophoresis+powder-coated anti-rust treatment.

Pillar

Customized aluminum alloy front and rear pillars, featuring high strength and rust-proof properties.

Car Door

High-strength steel skeleton + aluminum alloy skin + sliding window.

Seats

PU car special seat, ergonomic.

Dashboard

High-strength composite material molded instrument panel, equipped with combination switch, electric lock switch, emergency power-off switch, multi-functional pointer instrument (including indicators for voltage, power, speed, mileage, etc.), multimedia LCD instrument (including multimedia playback, Bluetooth connection, vehicle fault display), as well as USB/Type-C interfaces, storage box, cup holder and reverse camera.

Lights and warning signals

LED high/low beams, turn signals, rear combination taillights, horn, reverse buzzer.

Steering

Dual-push rack and pinion steering + electric speed-sensitive power steering system (with active return-to-center function)

Brake system

Front ventilated disc and rear drum type hydraulic dual-circuit braking + handbrake parking, with vacuum-assisted brake system

Front Suspension

Automotive-grade MacPherson independent suspension + sway stabilizer bar + coil springs + cartridge hydraulic damping

Rear suspension

Integral rear axle, steel plate springs + cartridge hydraulic shock absorbers.

Windshield

Automotive Grade Laminated Glass+ with dual swing arm wipers and a glass washer

Floor

Aluminum alloy patterned floor, no rust, strong, durable, beautiful

Wheels

Vacuum radial tires 195/70R15, with steel rims + rim decorative covers

Standard Parts

1,two-point retractable seat belts; 2, protective chains; 3, Audio system; 4, brake booster; 6, steering booster; 7, USB port.8, center rearview mirror.

Option

2pcs Air conditioners

⎮ Suspension and braking system

1. Front suspension: double arm independent front suspension+spiral spring +cylindrical hydraulic shock absorption.

2. Rear suspension: integral rear axle,speed ratio 16:1, coil spring damping + cylindrical hydraulic damping +rear stabilizer bar.

3. Brake system:zero crossing rear axle:four-wheel hydraulic brake,four-wheel disc brake+electronic brake parking.

4. Steering system:two-way rack and pinion steering system, automatic clearance compensation function.

5. Frame: high-strength sheet metal trapezoidal frame (electrophoresis+highlight).
